Description

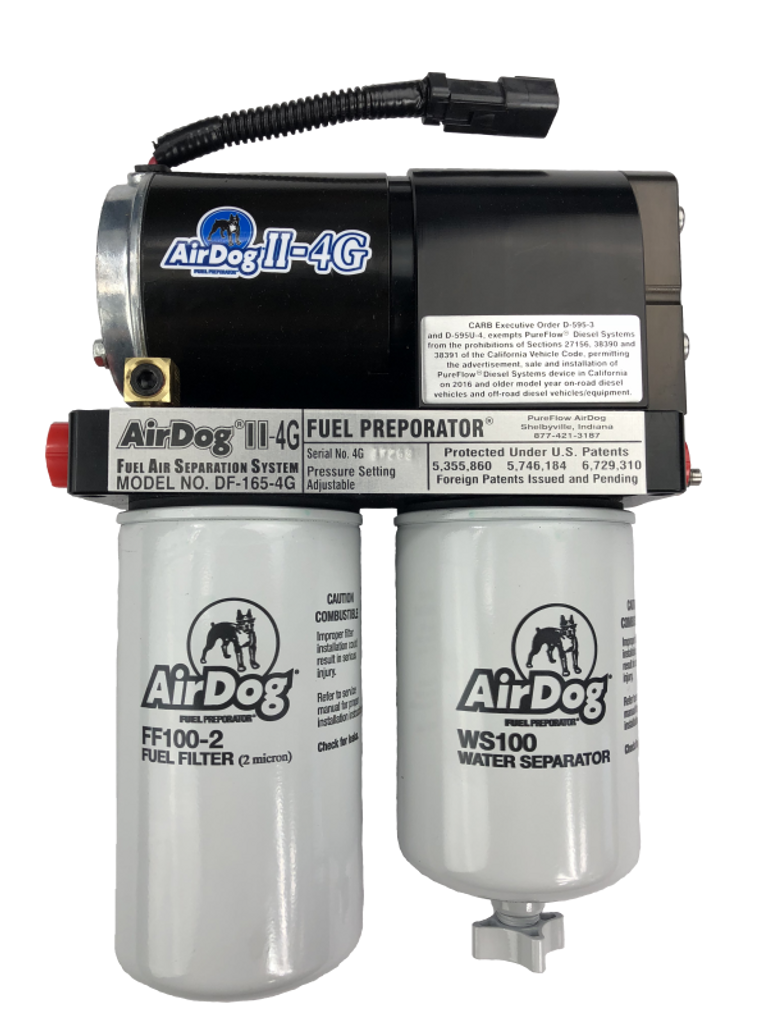

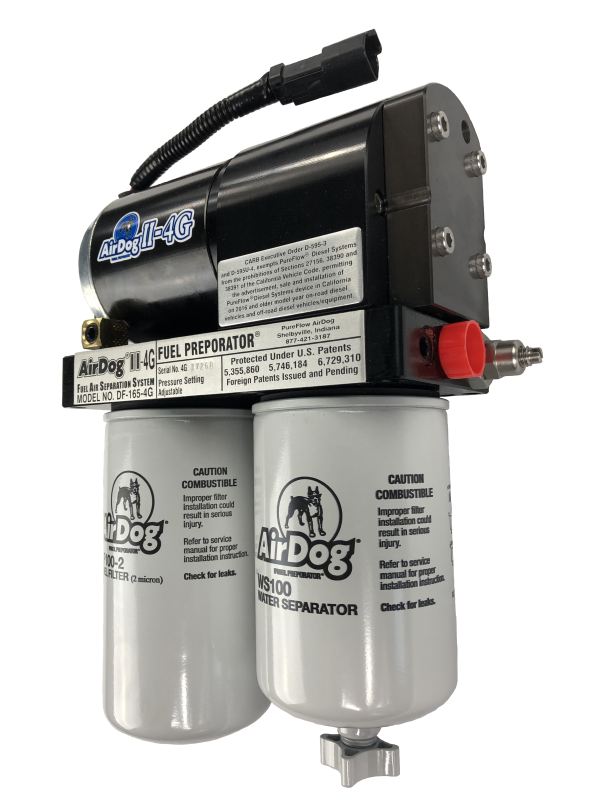

AirDog II-4G, DF-165-4G 2001-2010 Chevy Duramax

This is the AirDog II-4G DF-165 fuel system for the 2001-2010 Duramax 6.6L Diesel. This system mounts to the frame rail using the supplied sandwich plate mounting system. The suction side hooks up to the factory suction fitting in the fuel module. The pressure side connects directly to the factory injection pump feed line on the frame. The AirDog Air/Vapor return is sent back to the tank through a filler neck tee. This system is one of the easiest installations. Their Duramax kits usually see the largest performance gains as these trucks do not come with a lift pump from the factory. This is a 165GPH (Gallon Per Hour) fuel system for moderately modified trucks.

AirDog II-4G Display Stand Demonstration

Installation Guide
